3 ton Jib Crane

Jib crane is a kind of versatile, efficient and economical device, used for moving materials within an individual workstation, for moving objects from one work area to another or for serving as an auxiliary lifting device under overhead crane or other lifting systems. 3 ton jib crane refers to the crane with load capacity of 3 ton, and the crane types can be different to suit various requirements, like the types range from entirely self-supporting to types that mount to existing building support structures.

Main Types of 3 ton Jib Crane from Ellsen

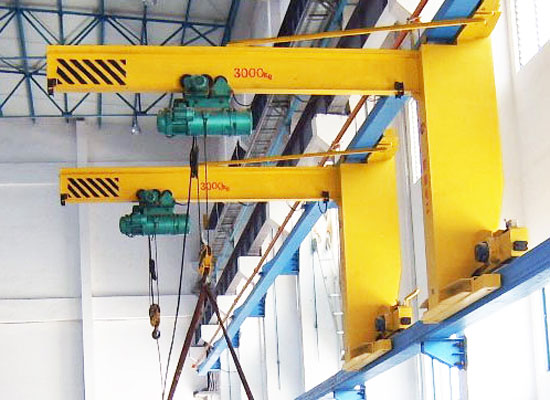

3 ton wall-traveling jib crane travels along the runways installed on the wall and can make full use of work area. It provides long lateral movement of materials without taking up floor space and also provides vertical lifting or lowering materials with the lift device. The length of the runways for the crane is determined according to the specific work needs and it is without limitation.

3 ton jib crane for sale
3 Ton Wall-traveling Jib Crane

BB 3 ton jib crane parameters:

Rated capacity: 0.5-5t
L: 3500mm
R1: 500-800mm
R2: 3000mm

Provide custom option

Get a Free Quote

3 ton wall-mounted jib crane utilizes the existing building structures for support which eliminates the need of adding additional floor support, that is to say, the costly foundations are not required. This type of jib crane is a low cost method of lifting and moving loads.

Wall mounted jib crane from Ellsen
3 Ton Wall-mounted Jib Crane

BX 3 ton jib crane parameters:

Rated capacity: 0.25-5t
Beam length: 2000-6000mm
Lifting height: 2000-6000mm
Lifting speed: 8;8/0.8m/min
Turning degree: 180°~270°

Provide custom option

Get a Free Quote

3 ton pillar-mounted jib crane is used for lifting or transporting loads within work space, it is not inhibited by walls, columns or other obstacles since it adopts pillar-mounted way. This jib crane also offers 360 degree rotation on request. The pillar mounted crane is an ideal solution for the places where the maximum hook paths are needed for applications with low headroom.

3 ton pillar jib crane provided by Ellsen
3 Ton Pillar Jib Crane

BZ 3 ton jib crane parameters:

Lift Capacity: 0.25-20t
Max Lift Height: 3-8m
Slew Angle: 360°
Level Travel Speed: 20m/min

Provide custom option

Get a Free Quote

3 ton free standing jib crane is installed on the floor and it doesn’t require any special floor bracket. Directly bolting to the floor is the most common way of mounting this kind of jib crane. This crane offers 360 degree rotation. It can be used on many work occasions, including indoor and outdoor places, like workstations, warehouse, production and assembly lines, docks etc.

Ellsen jib cranes for sale
Ellsen Freestanding Jib Crane

Ellsen free standing jib crane parameters:

Rated capacity:0.25-20t
Turning degree: 360°
L: 4300-4500mm
R: 1100-1700mm
r: 4000mm
H: 3800-4500mm

Provide custom option

Get a Free Quote

3 ton mast type jib crane is an economical solution for 360 degree rotation requiring no special foundation since it is designed to be floor mounted with upper support from building or overhead structures. It is with easy rotation even if it lifts heavy loads. Full and drop cantilevers are available as needed and it can maximize the trolley travel.

Mast type jib crane supplied by Ellsen
Ellsen Mast Type Jib Crane

Ellsen mast type jib crane parameters:

Lift Capacity: 0.25-10t
Max Lift Height: 3-8m
Slew Angle: 360°
Level Travel Speed: 20m/min

Provide custom option

Get a Free Quote

3 ton wall bracket jib crane offers 200 degree rotation, utilizing a standard I-beam boom, a tie rod threaded at both ends, a fabricated beam bracket, and two wall brackets (one for the tie rod and the other one for the beam). This type of jib crane can provide the maximum usage of the work space because there is no supporting component under the crane boom.

All the above types of jib cranes are available from Ellsen. No matter which type of the crane you choose, it can just facilitate your lifting work and greatly improve productivity and efficiency. Our jib cranes can be used both indoors and outdoors as required. They can serve as supplements of large overhead cranes or can be overlapped with other jibs to provide stages coverage. With the great adaptability, Ellsen jib cranes have been exported to many countries and regions and our customers are very satisfied with our cranes’ quality. If you have any need of the jib crane for sale, please just feel free to contact us and we promise you will get the best crane solution for your specific application. Send emails to us to get more details about our jib crane price.

3 ton jib crane for sale
Ellsen 3 ton Jib Crane
BZ Type Jib Crane Parameters
Type BZ 0.25 BZ 0.5 BZ 1 BZ 2 BZ 3 BZ 5 BZ 8 BZ 10
Lift Capacity (t) 0.25 0.5 1 2 3 5 8 10
Max. Lift Height(m) 3 3 3 3 4 4 6 8
Slew Angle(0) 360 360 360 360 360 360 360 360
Lift Speed (m/min) Normal 4;10;8 5;10;8 8 8 8 8 8 8
Slow 1;2.5;0.8 1.25;2.5 0.8 0.8 0.8 0.8 0.8 0.8
Level Travel Speed(m/min) 20 20 20 20 20 20 20 20
Slewing Speed(r/min) 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6
Electric hoist wire rope electric hoist or chain electric hoist
Power supply 3 phase 380v/50hz, 440v/60hz, 240v/60hz, 415v/60hz, etc
Control mode Pendent push button control or remote control
BB Type Jib Crane Parameters
Type Rated capacity(t) L(mm) R1(mm) R2(mm)
BB1 1 3500 500 3000
BB2 2 3500 500 3000
BB3 3 3500 600 3000
BB5 5 3500 800 3000
BX Type Jib Crane Parameters
Rated Capacity ton 0.25 0.5 1 2
Beam length mm 2000~6000
Lifting height mm 2000~6000
Lifting speed m/min 8;8/0.8
Travelling speed m/min 10; 20
Turning speed r/min 0.76 0.69 0.6 0.53
Turning degree degree 180°
Duty Class A3
Power source 380 V, 50 HZ, 3 phase (or other standard)
Working temperature -20~40°C
Control model Pendent push button control or remote control

Please feel free to contact us for quotation.
